Parameter

Spec

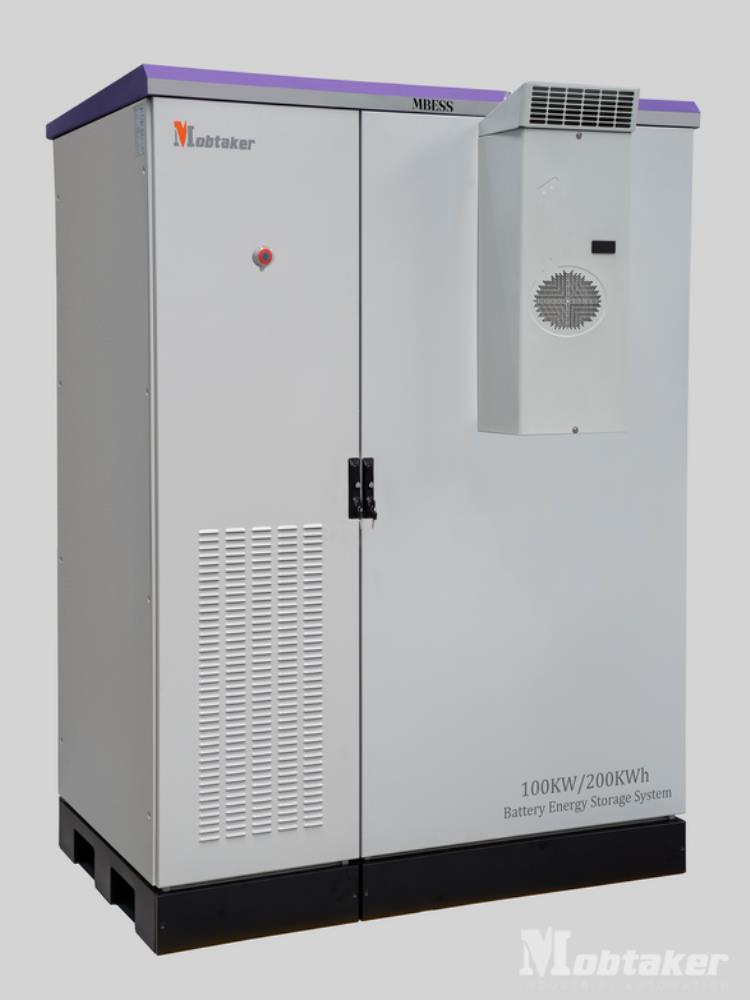

 Battery Energy Storage Data

LithiumLFP, 3.2V, 314Ah, 0.5C, Cycle Life: 12,000 cycles

Battery Cell Spec

1P16S, 51.2V,16.1KW / 1P13S 665.6V, 209KW

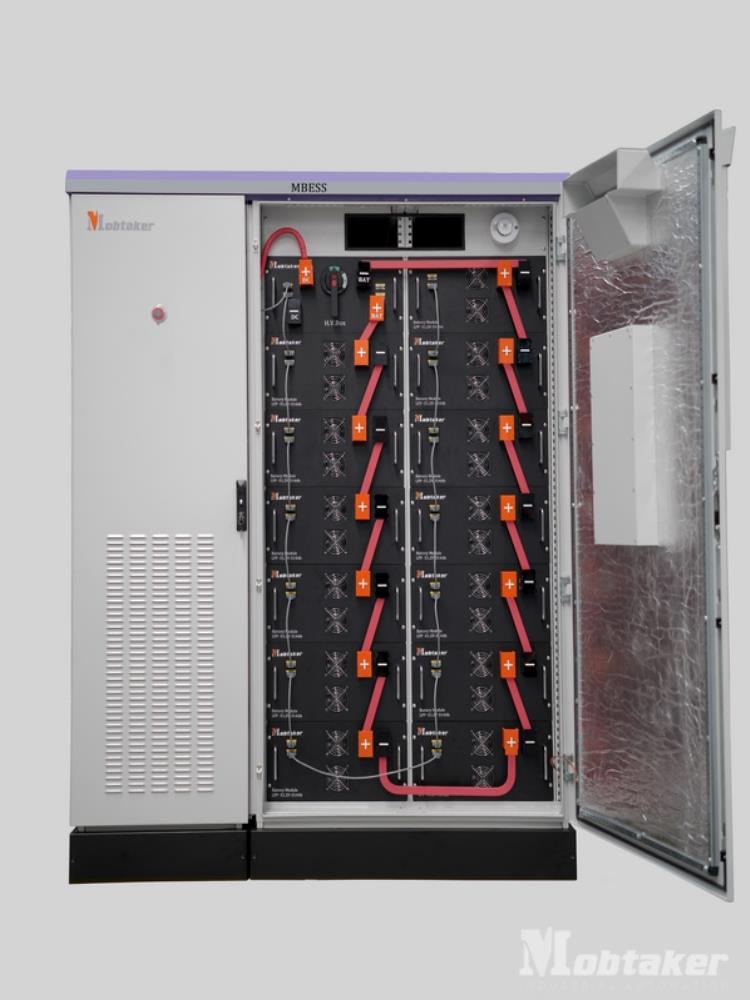

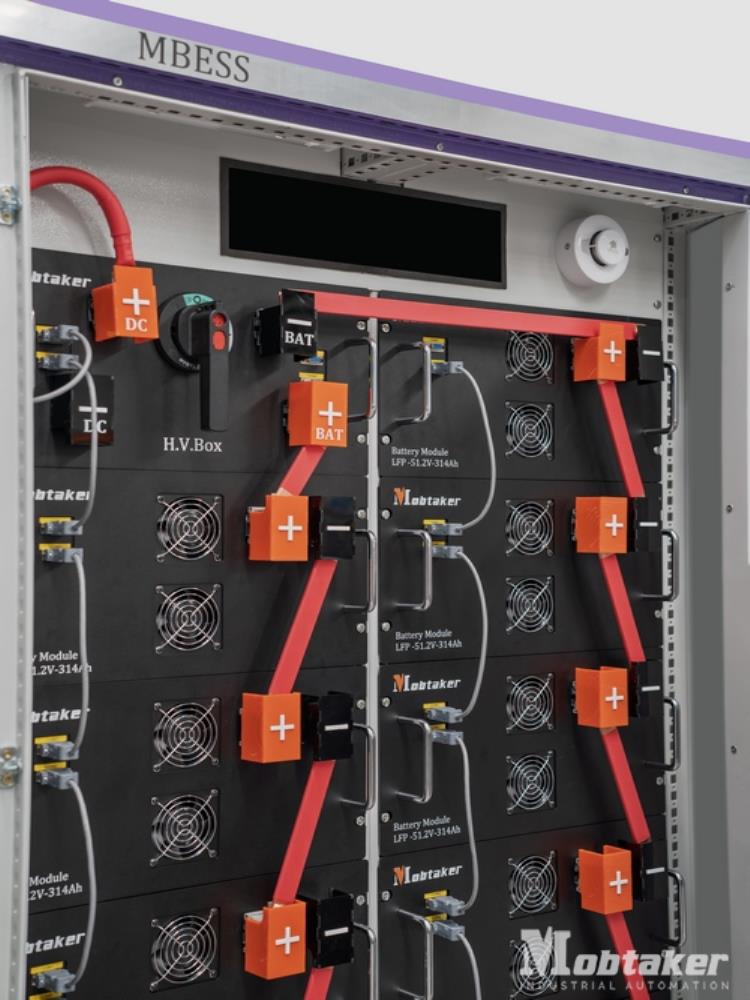

Battery Module/Rack

110KW/200A

Max.Charging&DischargingPower/Current

520V～760V (Acceptable Range: 250V～820V)

Operating Voltage Range

99%

Depth of Discharge (DOD)

95%

Cell Energy Efficiency

2*50kW

DC/DC Converter

                                      Input PV

2*50kW

Max Input Power

900V/ 180V～800V

Max Pv Open Circuit/ MPPT Voltage Range

2

MPPT Quantity

                  ACSide

3P3W/3P4W , 50Hz

Grid Connection

125kVA

Rated Output Capacity

137.5kVA

Max. Output Capacity

250kVA

Max. Grid Input Capacity

360A/ 180A

Max. Input Current/Max.Output Current

110% Long term

Overload Capability

0.99

Power Factor

98.5%

PCS Max Efficiency

On/off-grid switching time <10ms, Max. efficiency 99.5%

STS unit

 SystemParameters

-30℃～60℃

Operating Temperature

Ethernet/4G/RS485/CAN

Communication Method

IP54

Cabinet Encloser Protection

5KW Intelligent Air Cooling

Cooling Method

0~95%RHNon-Condensing/ 4000m

Operating Humidity/ Altitude

1690 ×1000×2230

Dimension (W*D*H) [mm]
