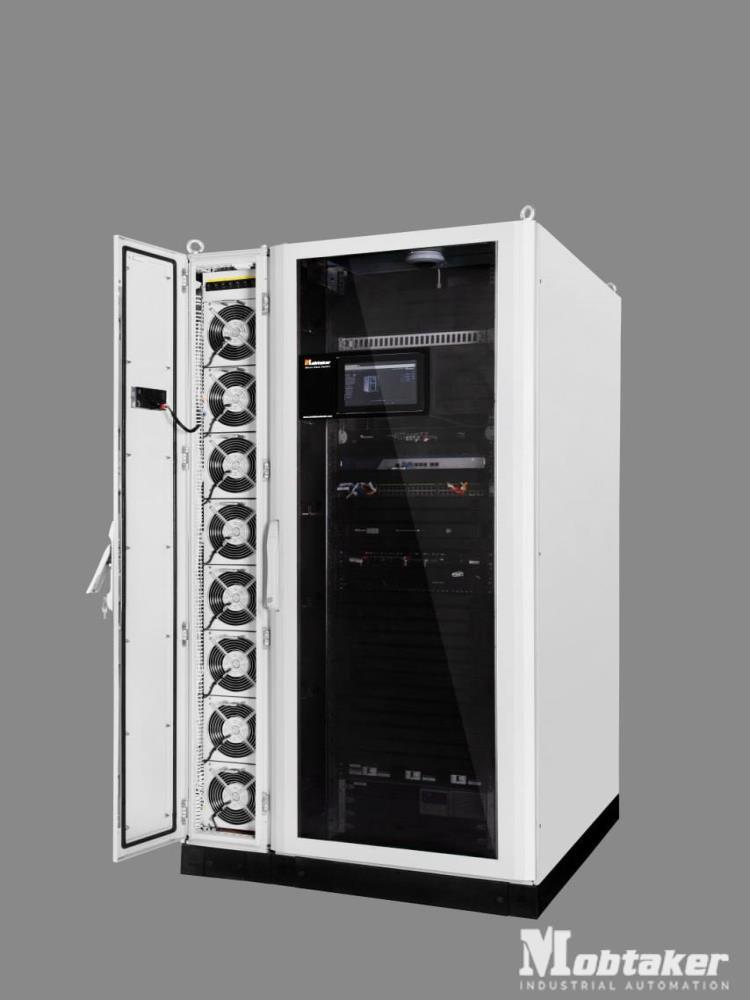

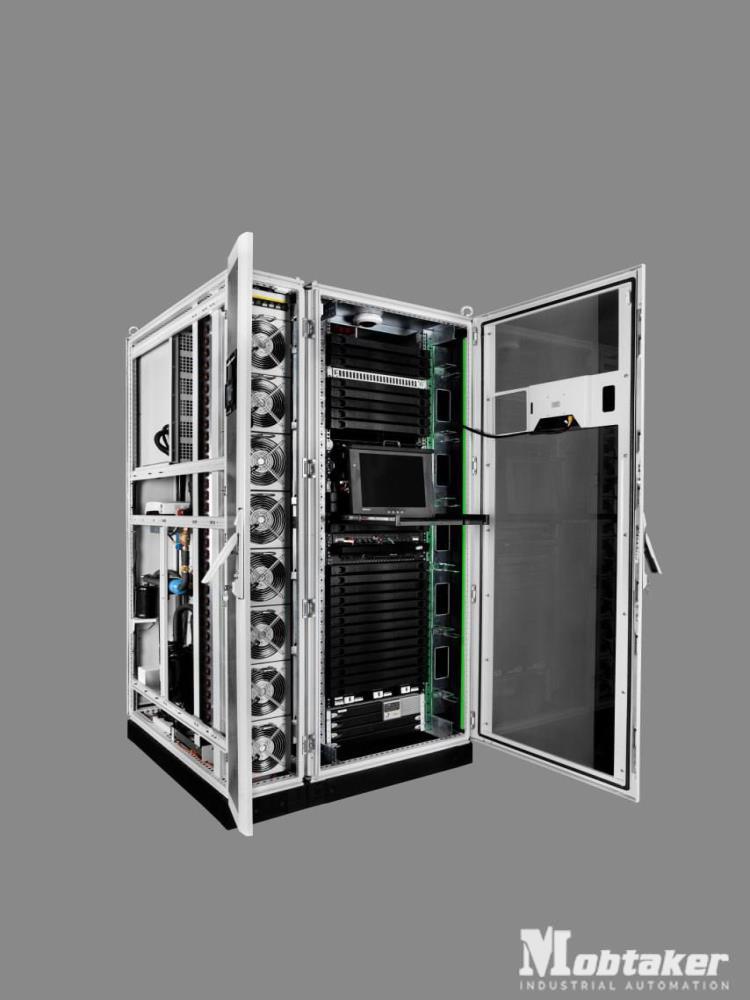

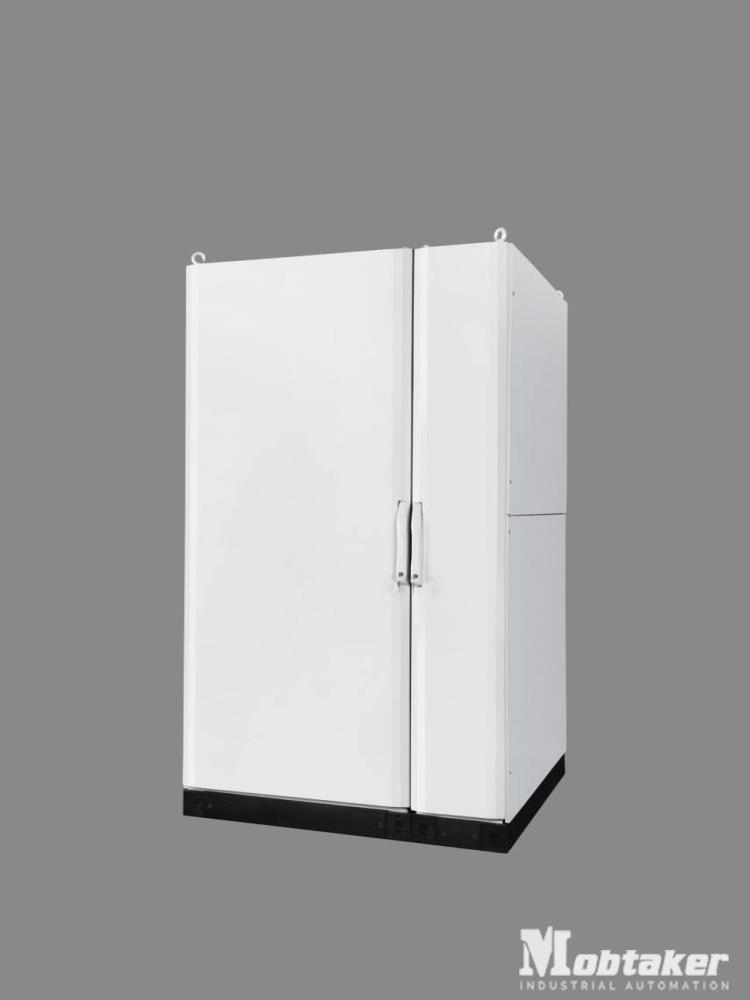

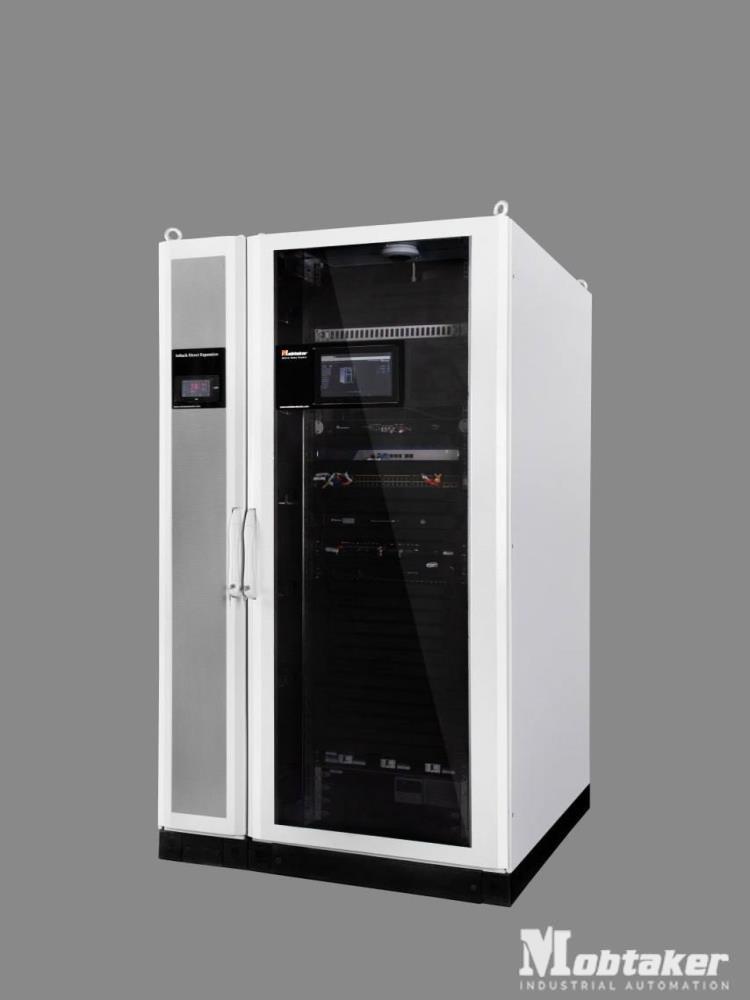

This product is a data center with complete components that provides all the user's needs from a data center, in such a way that all the equipment is assembled in the factory and this equipment is ready for operation in the shortest time. The production of this product depends on the customer's order in different rack sizes, in different cooling capacities, in two models of lateral standing cooling with high capacity or rack mount cooling in low capacities, equipped with UPS in different capacities, along with batteries Back-up and complete fire and security system is done. In addition, each rack is equipped with PDUs that distribute electricity under the network, and the consumption information and performance status of the units can be identified through the BMS and DCIM system.
-
The frame structure is made of ST37 oil sheet with high resistance
-
Electrostatic powder paint on the Inro body with RAL 7035 code
-
The body has IP55 standard that is suitable for installation in outdoor spaces
-
Using all control equipment from Carel brand in the ventilation system
-
Using variable speed centrifugal fans
-
Equipped with notification and automatic fire extinguishing system
-
Equipped with advanced monitoring and management system
-
The ability to provide cooling in two models, the external front flow and the internal rack mount
-
Available in different sizes depending on the client's needs
-
Customization of each of the internal elements of the system
-
The ability to feed the device from two separate power sources
-
Networked PDUs to manage systems performance
-
The ability to install a dirt alarm sensor in the air filter of the ventilation system (optional)
-
The ability to install a drain pump in the pan of the ventilation system (optional)
-
Ability to install a separate leak sensor (optional) apart from the pan float sensor
-
Using a coil with Blue Fin technology for a longer life in the ventilation system
-
Equipped with humidifier (optional)
-
Equipped with a reheater (optional)
-
Advanced visual display system equipped with 42 temperature sensors
-
Equipped with a KVM monitor for the user inside the system
-
Equipped with color touch screen
|
MMD 4222011
|
MMD 4212011
|
|
|
H:2000, W:1800, D: 1200
|
H:2000, W:1050, D: 1200
|
Total Package Size
|
|
H:2000, W:750, D: 1200
|
H:2000, W:750, D: 1200
|
Rack Size
|
|
2
|
1
|
Numbers of Racks
|
|
84u
|
42u
|
Total Rack Units
|
|
76u
|
36u
|
Rack Unit Usable
|
|
598kg
|
498kg
|
Shipping Weight
(without condenser)
|
|
1852kg
|
853kg
|
Usable Payload
|
|
158
|
146
|
Configured system weight
(without cooling)
|
|
380V / 3Ph / 50Hz
|
380V / 3Ph / 50Hz
|
Input Voltage
|
|
Mobtaker MRR 30202
|
Mobtaker MRR 30202
|
Cooling unit model
|
|
Wall mount
|
Wall mount
|
Cooling installation model
|
|
20kW
|
20kW
|
Nominal cooling Capacity
|
|
8* ebm centrifugal
|
8* ebm centrifugal
|
Cooling Fans
|
|
62db @1m
|
62db @1m
|
Average sound level
|
|
Mobtaker IP-based
|
Mobtaker IP-based
|
PDU Model
|
|
4* MP31013
|
2* MP31013
|
|
2*16A 220-240V
|
2*16A 220-240V
|
PDU Input Voltage
|
|
Ablerex 3kVA: 4U
|
Ablerex 3kVA: 4U
|
UBS
|
|
Nexcom NSA 3170
|
Nexcom NSA 3170
|
Main board
|
If the number of units is provided to the user more than one rack and provided that the cooling system is responsive, the micro data center can be equipped with 2 racks
