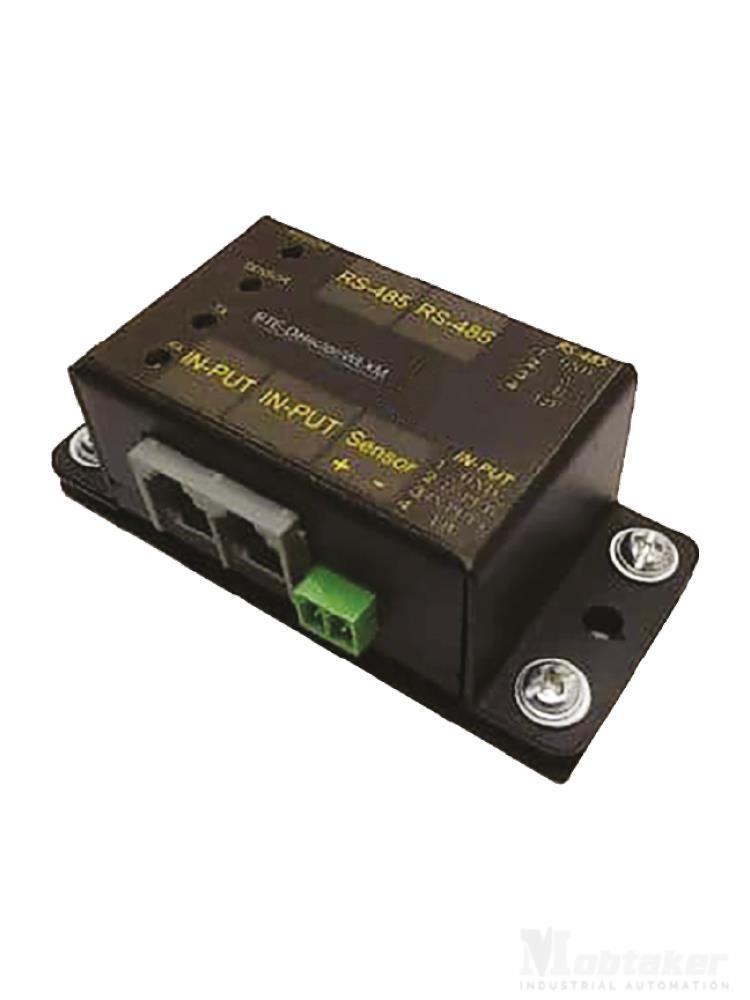

Liquid Leak Detector



The liquid leak detector is a high-performance liquid leak detection module that can be used as a leak detector and trigger of rope sensors to detect ethylene glycol or other conductive liquids along the length of the sensor. By connecting the device through iBus, there is the ability to integrate and monitor with monitoring systems to send alerts and control the device remotely. One of the strengths of this product is the ability to connect up to 20 modules in this way, and due to this advantage, a larger number of detectors can be monitored and controlled using less ports in the central device.
Another important feature of this device is its wall mount, which makes its installation very quick and easy.


Product Details

increasing the length of the rope water leak sensor up to 85 meters
The ability to connect devices through the iBus protocol up to 20 devices
Using the RJ-11 connector for ease of connection and communication
Ease of installation due to box wall mount
Ability to adjust the sensitivity of the sensor
Sound warning in case of changes
The possibility of connecting the sensor to Smart PDU through digital input
It has an LED indicating the status of the sensor and the power of the device
It has TX and RX status indicator LED
No need to use external power supply for the module
Possibility of reusing the sensor many times, after drying it
Detection of ethylene glycol or other conductive liquids along the length of the sensor

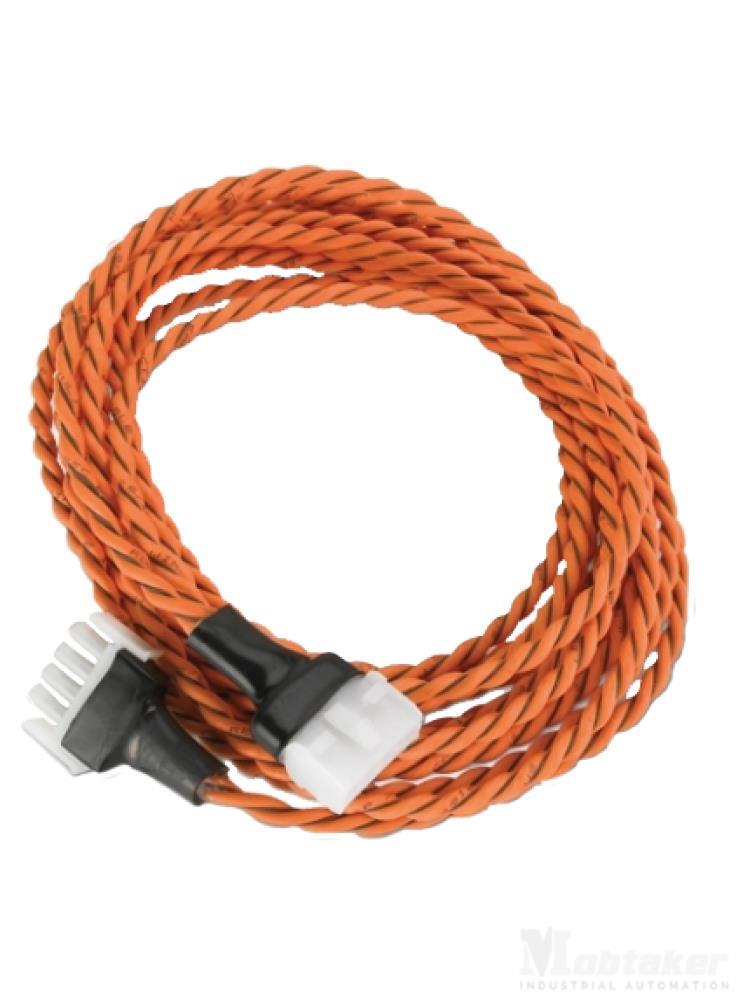

cable Diameter

0.24 in (6.0 mm) Nominal

Sensing Wires

30*2 AWG with jacket of conductive fluorpolymer

Carrier

Fluor Polymer

Cable Weight (15m length/ft 50)

500g

Cable Color

High-Visibility Yellow

Breaking Strength

Cable only: 160 Ib (72 kg) Including Connectors: 70Ib

Cut-through Force

>50 Ib with 0.005 (>22 kg with 0.13 mm); in blade

Abrasion Resistance

> 65 cycles per UL719

Maximum Continuous Operating Temperature

70 degrees

Leak Size to Alarm (tap water)

2 in (50 mm) maximum at any point along sensing

Drying Time

15 seconds

Standard Cleaning Method

Wipe with Clean Damp Cloth

Device Power Supply

12V DC

Device Output

1 Dry Contact

Communication Channel

1 iBus

Rope Sensor Input

1 Leak Rope
