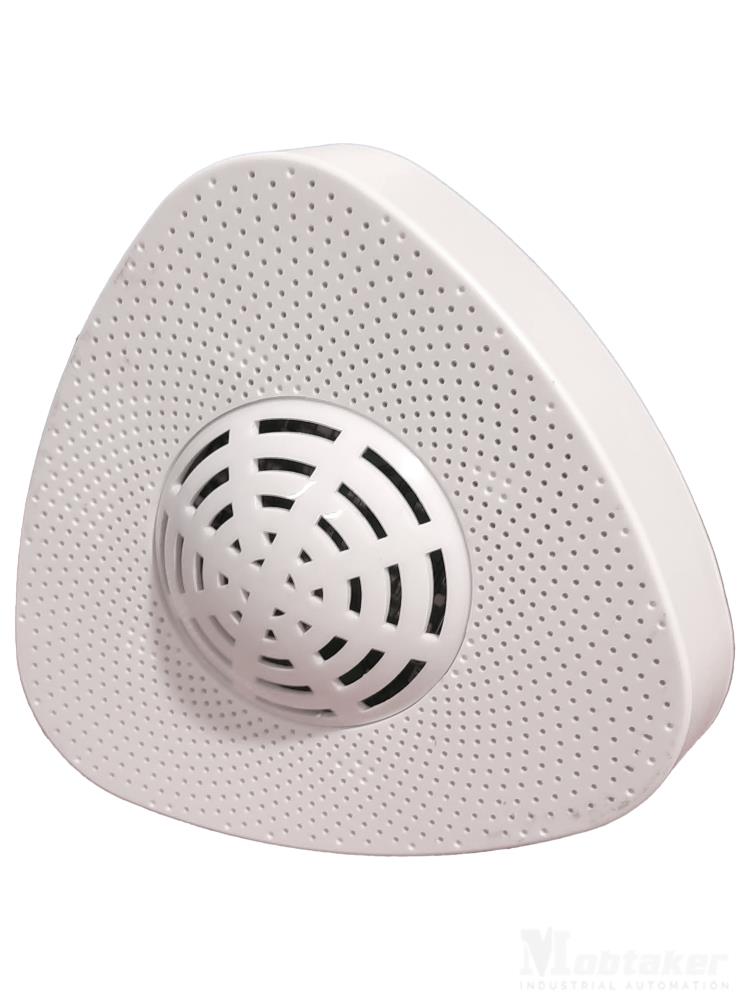

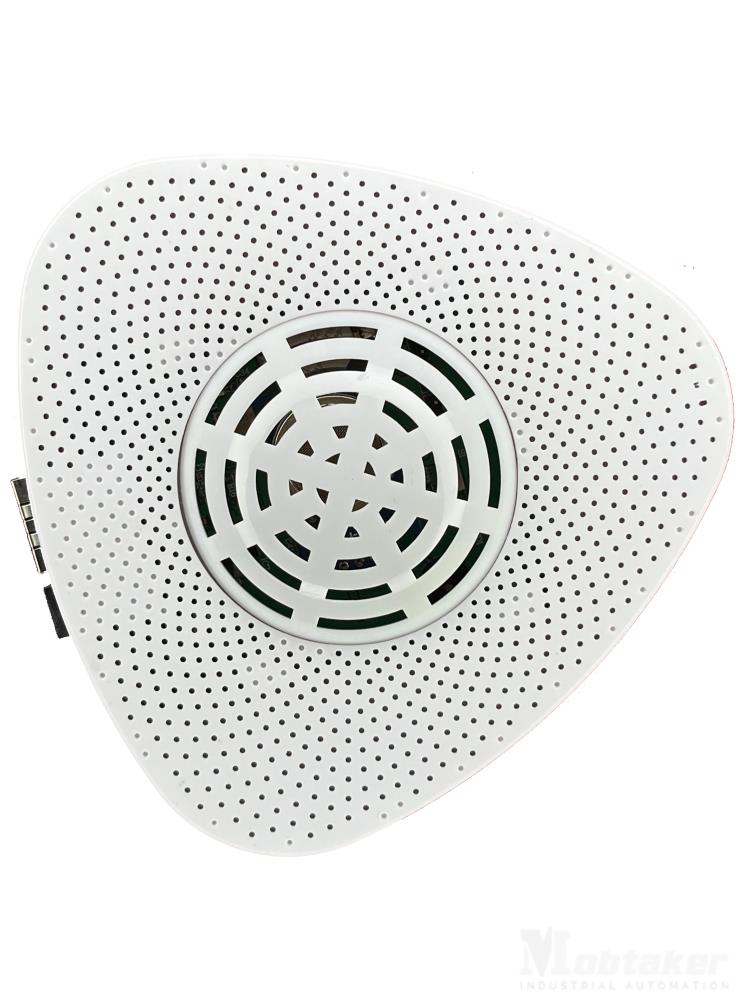

Air Quality Sensor



Air Quality is a product for detecting air quality in dormitories, residential houses, hotels, hospital rooms, guard rooms, racks, data center server rooms, office space, etc

This product has an air pollution detection sensor from the MQ sensor series, whose internal structure includes a heater along with an electrochemical sensor. These sensors are sensitive to a wide range of gases and can detect smoke, alcohol and benzene in the air

.This module has the ability to be calibrated manually, through which its sensitivity can be changed

Due to the support of the iBus port, it is possible to integrate with the software system (DCIM) and all Mobtaker RTUs



Product Details

High sensitivity to harmful gases in a wide range
Sensitivity to benzene, ammonia and sulfide, LPG, propane and hydrogen
Ease of setup
Detection of domestic gas leaks
Detection of industrial combustible gases
Insensitivity to moisture and static electricity and changes in air pressure
Has output signal indicator
Ability to adjust sensitivity


perating Voltage

5V DC

Current

150mA

AO OUT

0.3 ~ 0.1

Dimentions

32 x 20 x 22 mm

Working Temp

-10°C ~ 50°C

Working Humidity

%0 ~ 95% RH

Sensitivity

4-2%obs/ft

Communication Channels

RS-485

Display

-

Sensor Type

Inside Heater

Evaluation Type

AIR

Density

10 to 300 ppm Ammonia, 10 to 1000 ppm Benzene

Internal Heater Power

750 mW

Internal Heater Resistance

33 ohm
