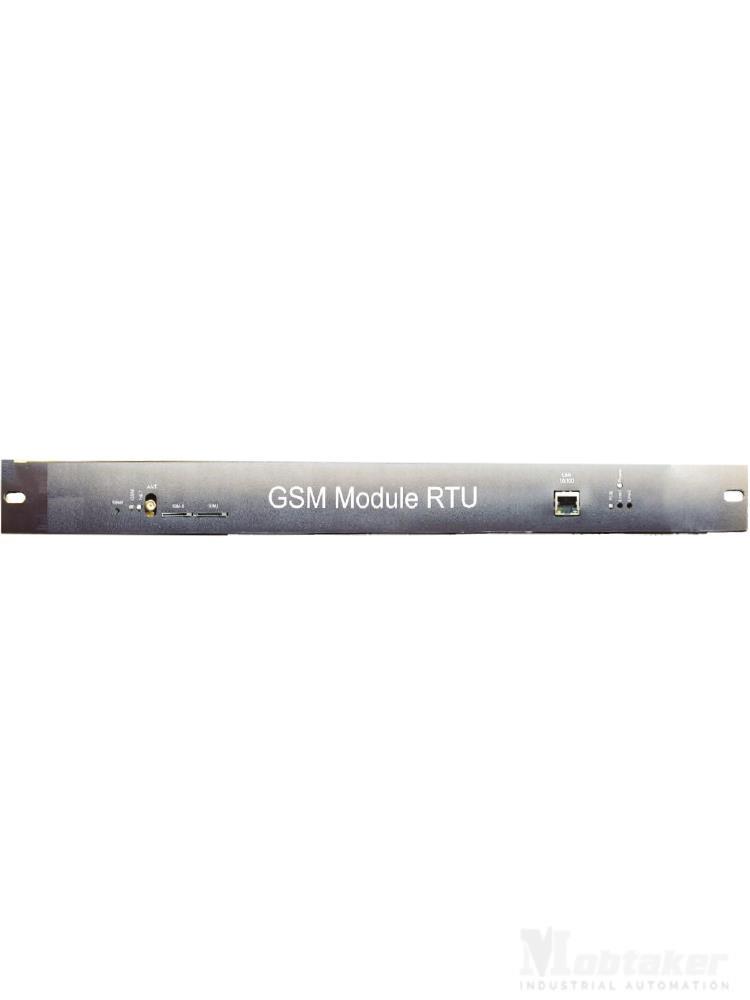

The GSM module is used in the comprehensive control and monitoring solution of the innovative data center in order to inform and send the information obtained from the monitoring of all the different sensors in the data center and server room.
By supporting various communication protocols such as Modbus/TCP IP, SNMP, Modbus/RTU, integration and monitoring by DCIM software, as well as all conventional software such as SolarWinds, PRTG and OpManager, as well as various hardwares that need to be notified are available in this module. .
This device has a built-in bilingual web server through which all SMS and notification settings and various control scenarios can be defined.
This product has the ability to support two SIM cards, which enables the system to send performance reports, status of inputs and outputs, notification of warning conditions, etc. from other hardware and software.
Another feature of this product is its rack mount, which makes its installation very quick and easy.
Matching iBus port with Master/Slave mode
Ethernet port for software monitoring
Support 32 devices with Modbus/RTU protocol
Configuration without the need for desktop software
The ability to define scenarios and functions without the need for an operator
Electrical protection of device inputs against overvoltage
The ability to turn on automatically after turning off the power
Equipped with an external GSM antenna connection port to strengthen the signal
It has RTC with backup battery
It has LED displays of the working status of the device as well as inputs and outputs
The presence of two power inputs for the use of city electricity and (UPS) at the same time with a separate
|
Power Supply
|
4W 220V
|
|
PoE Support
|
24V
|
|
1-Wire Sensors
|
2 Temp & Hum
|
|
Transistor Output
|
44 (24V-500mA)
|
|
Communication Channels
|
Ethernet RJ45 (10/100, Modbus/TCP IP), 1 Modbus/RTU & iBus
|
|
Wireless Communication Channels
|
GSM Module-2SIM
|
|
SNMP
|
Agent Ver.1, 2c, 3Trap
|
|
Modbus Protocols
|
TCP IP & RTU/ASCII
|
|
Web Server Languages
|
Persian, English
|
|
Device Installation
|
Rack Mounted
|
