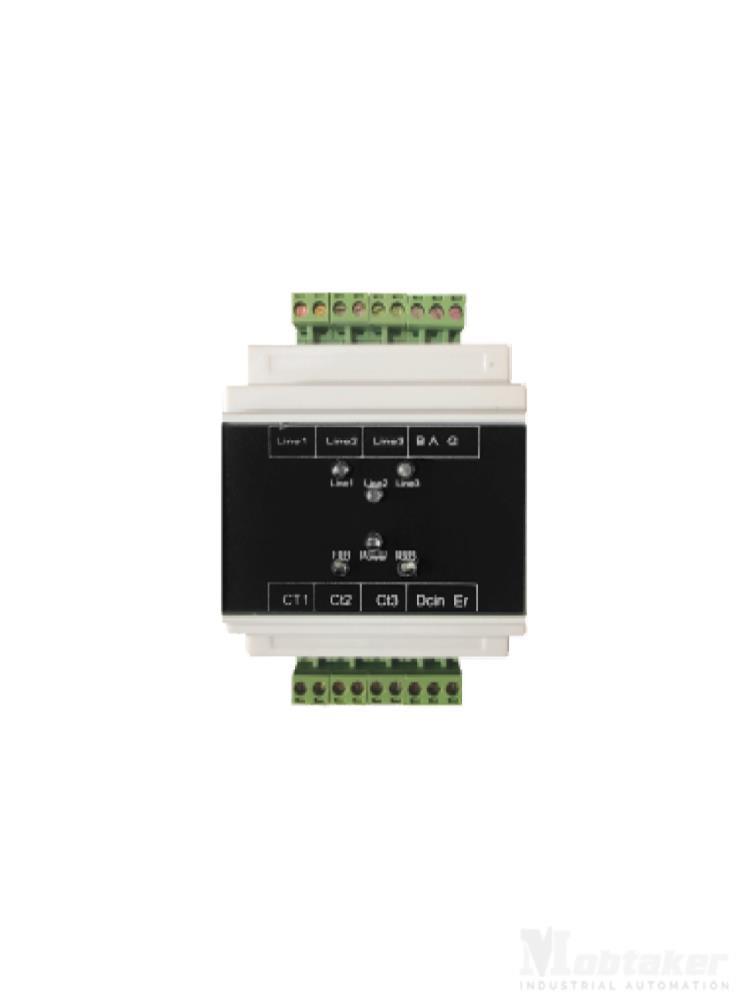

This product is a module for monitoring voltage, current, electrical power and frequency of three phases on the iBus platform. This module is usually used for electrical panels in data centers and server rooms, whose task is to display the current state of electrical quantities.
The design of the register map of this device is completely standard and in accordance with PM1200 of Schneider company.
By supporting the Modbus/RTU communication protocol and using the innovative converter, there is the ability to integrate and monitor with the innovative DCIM software as well as all conventional software such as SolarWinds, PRTG, OpManager, etc.
This product has the ability to connect to the GSM module, which enables the system to send performance reports, status of inputs and outputs, notification of alarm conditions, etc.
Another feature of this product is its rail mount, which makes its installation very quick and easy.
Microcontroller architecture based on chips (ARM-CortexM4)
Matching iBus port with Master/Slave mode
Power supply 8 to 3 V DC
The ability to adjust the data rate (Baudrate) and other parameters of the RS-485 port
Support Modbus protocol
Support for electronic and industrial current transformers
It has LED displays of the working status of the device as well as inputs and outputs
The ability to turn on automatically after turning off the power
The ability to connect to the GSM2S2TH module in order to use SMS notification capabilities
GSM capabilities and mobile application
|
Power Supply
|
24V
|
|
PoE Support
|
24V
|
|
Communication Channels
|
Ethernet RJ45 (10/100, Modbus/TCP IP), 1 Modbus/RTU & iBus
|
|
SNMP
|
Agent Ver.1, 2c, 3Trap
|
|
Modbus Protocols
|
TCP IP & RTU/ASCII
|
|
Web Server Languages
|
Persian, English
|
|
Device Installation
|
DIN-rail Mounted
|
|
Operating Temperature
|
-10°C, +70°C
|
|
Storage Temperature
|
-40°C, +85°C
|
|
Operating Humidity
|
Max 95% r.h, no condensation
|
