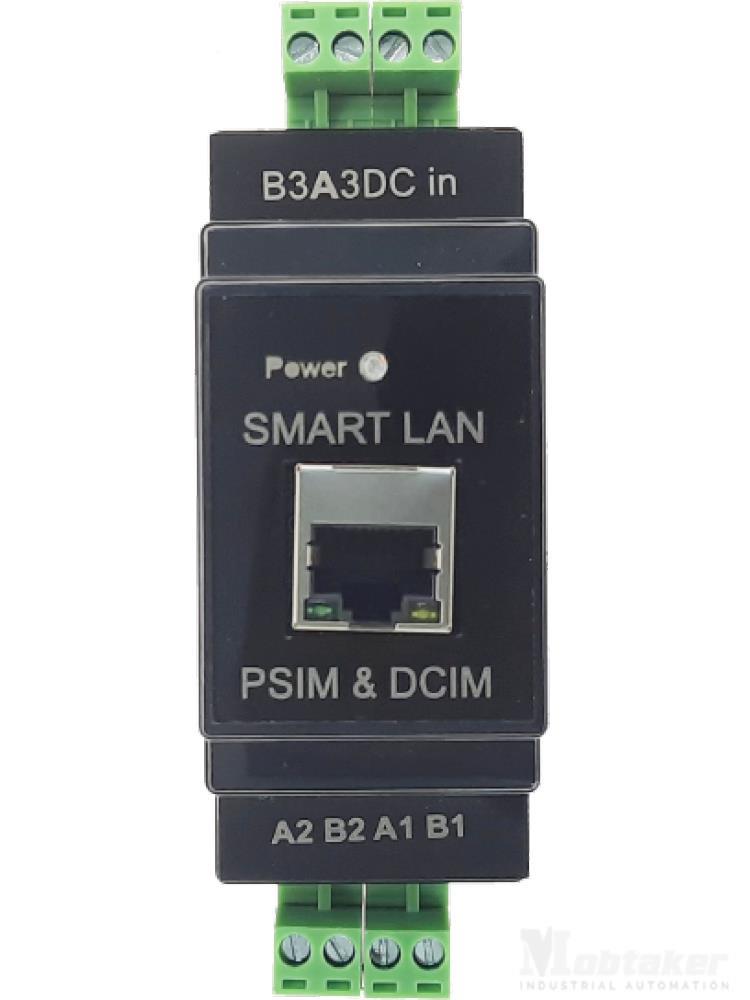

This product is a smart device for monitoring PM1200 and PM2100 modules of Schneider-Electric company. This module is usually used in electrical panels in data centers and server rooms, and its task is to display the current status as well as electrical quantities.
PM1200 is responsible for receiving information from PM2100&PM1200 module and sending it under standard protocols.
By supporting various communication protocols such as Modbus/TCP IP, SNMP, Modbus/RTU, it is possible to integrate and monitor with the innovative DCIM software, as well as all conventional software such as SolarWinds, PRTG, OpManager, etc.
This device has a web server through which the status of the variables can be viewed on the web. This device has a web server through which the status of the variables can be viewed on the web.
Microcontroller architecture based on ARM-Cortex M4 chips
Matching iBus port with Master/Slave mode
Ethernet port for software monitoring
Support 32 devices with Modbus/RTU protocol
Configuration without the need for desktop software and through the internal web server
The ability to define scenarios and functions without the need for an operator
It has RTC (Real-Time Clock) with backup battery
The ability to connect to the GSM2S2TH module in order to use SMS notification capabilities
|
Power Supply
|
24V
|
|
PoE Support
|
24V
|
|
Communication Channels
|
Ethernet RJ45 (10/100, Modbus/TCP IP), Modbus/RTU & iBus
|
|
SNMP
|
Agent Ver.1, 2c, 3Trap
|
|
Modbus Protocols
|
TCP IP & RTU/ASCII
|
|
Web Server Languages
|
Persian, English
|
|
Device Installation
|
DIN-rail Mounted
|
