Considering the importance of batteries in the emergency power system and the cost of battery maintenance, it is necessary to obtain information about the correct functioning of batteries in the system in order to optimally use batteries and increase their lifespan.
Innovative battery monitoring system (Battery Monitoring System) is a hardware-software set to measure important battery parameters and transfer information through various communication platforms, display information and notify users in a graphical environment.
In the innovative battery monitoring system, each battery has a voltage sensor and the string current is also measured by the CT current sensor. The data of these sensors are sent to the central controller for analysis to display the information needed by the user in the software environment in real time.
Possibility to turn off the system according to the battery level
The possibility of defining users and different access levels to program sections based on the needs of the collection in the monitoring software
Recording records of users entering and exiting the system and their performance in the monitoring software
The possibility of graphic monitoring using appropriate graphic symbols and colors
Addressability for each module and battery status monitoring
Support for various sensors such as temperature and humidity, smoke, magnet, etc.
Displaying the measured parameters of the battery in three formats: numbers, tables and graphs
Monitoring the temperature of the battery cabin
Monitoring the internal impedance of the battery cell
|
General Features
|
|
Power Supply
|
4W 220V (20bt) - 24V (4BT) - 12V (1bt, No need to external Power)
|
|
PoE Support
|
YES
|
|
Digital Input
|
2 (1 and 20 Battery)
|
|
Outputs
|
1 Relay, 2 Transistors (20 Battery Only)
|
|
1-Wire Sensors
|
1 Temp & Hum (1 and 4 Battery), 2 Temp & Hum (20 Battery)
|
|
Communication Channels
|
1 Modbus/RTU, 1 Modbus/TCP (20 Battery Only)
|
|
Device Installation
|
Wall & Dinrail Mounted
|
|
# Of Monitored Batteries
|

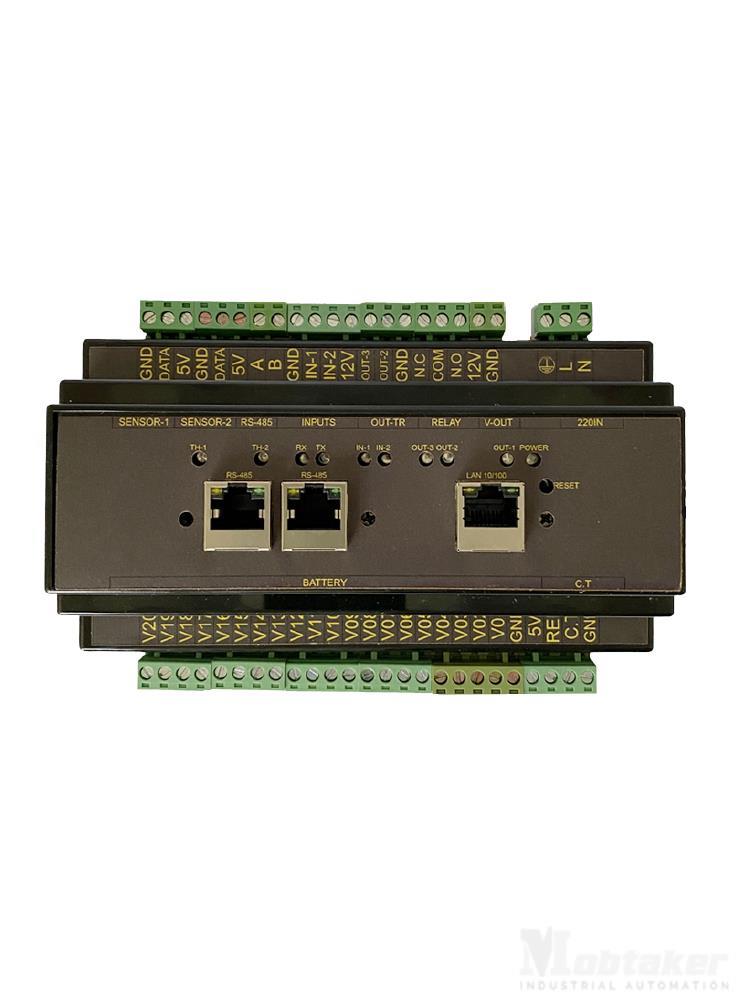

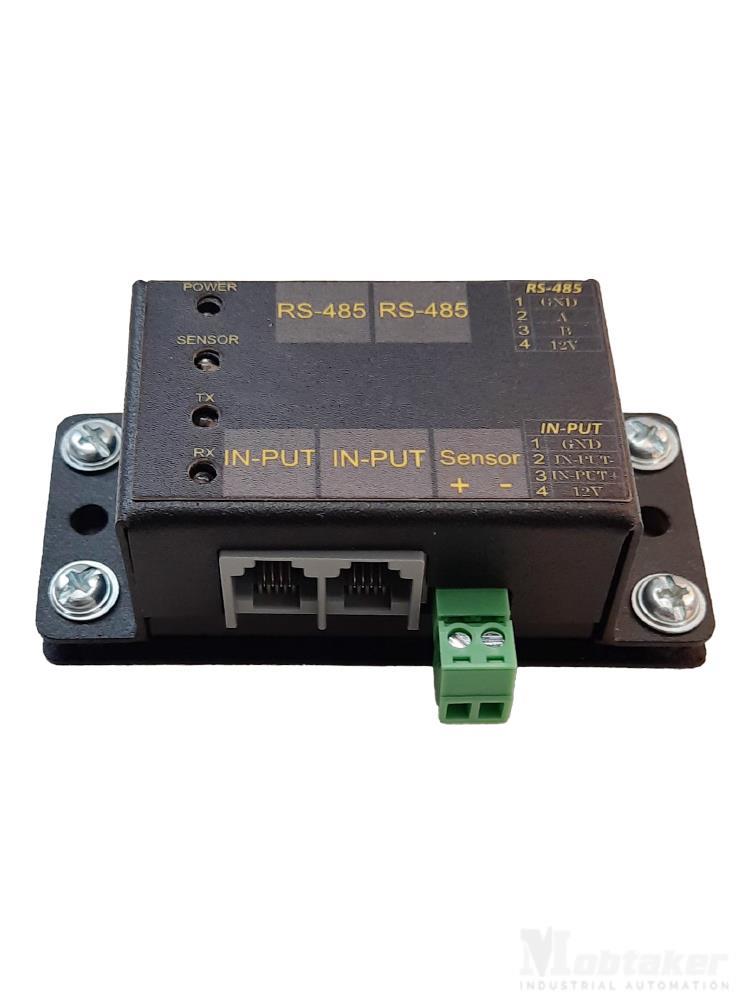

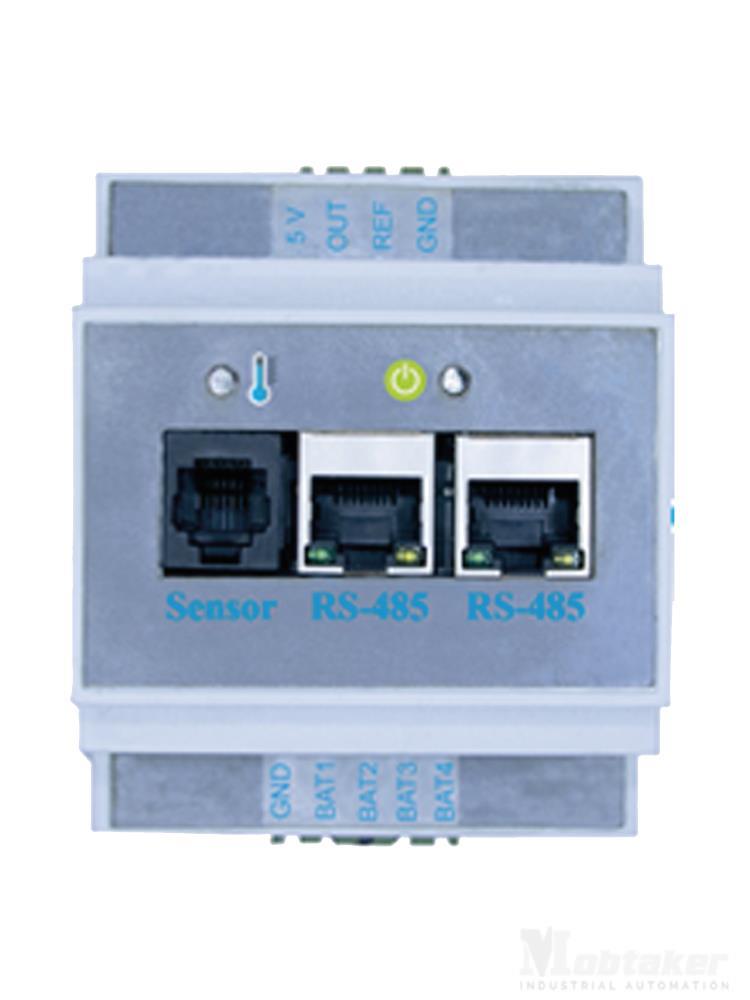

1-4-20
|
|
Compatible via iBus
|
|
Battery Monitoring
|
Relay Box (16-8-4)
|
|
GSM Module
|
Power Meter (Single-Phase)
|
|
Smoke Detector
|
Power Meter (Three-Phase)
|
|
Air Quality Detector
|
LDR Sensors
|
|
Door Magnet Detector
|
Temp & Humidity Sensor
|
|
Nitrogen oxide sensor
|
Intelligent Beacon
|
|
CO2 Detectors
|
Vibration Sensor
|
|
Sounder Flasher alarm
|
Leakage Sensors
|
|
Motion Detector
|
Particle sensors
|
|
Intelligent SNMP Card
|
|
