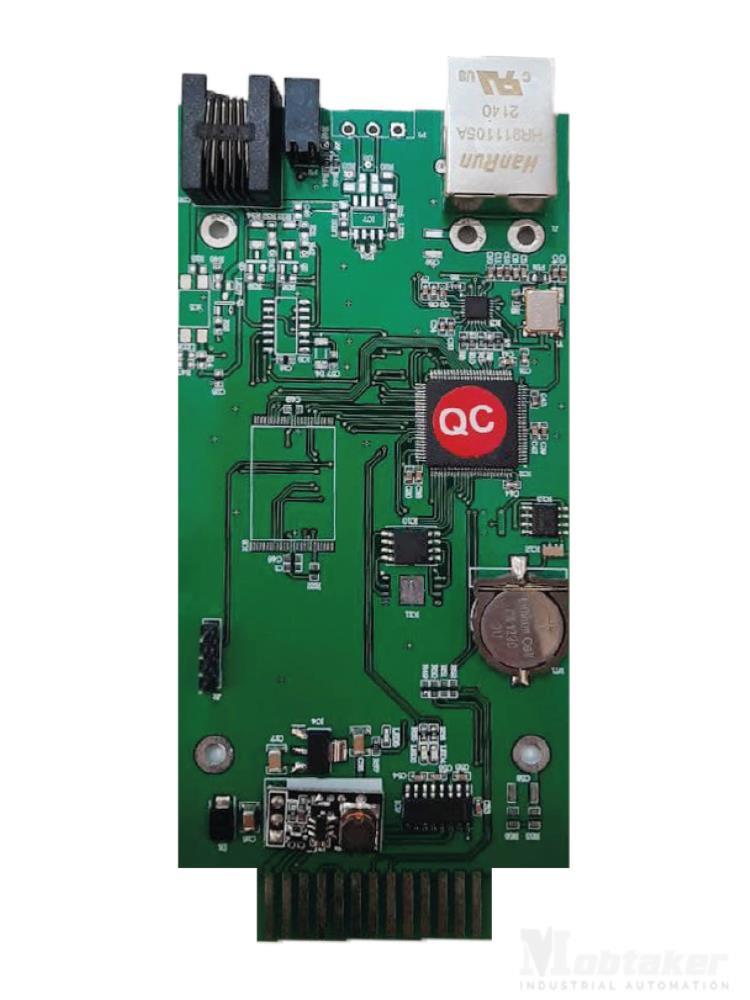

It is a smart module for monitoring all standard UPS on the Local Area Network or the Internet.
Due to the variety of UPS reading standards, this device has a built-in bilingual web server, which allows the user to choose the desired UPS type and model for reading. Also, through this web server, you can refer to charts and graphs related to UPS status for reporting.
By supporting various communication protocols such as Modbus/TCP, SNMP, Modbus/RTU, there is the ability to integrate and monitor with innovative DCIM software as well as all conventional software such as SolarWinds, PRTG, OpManager, etc.
It should be noted that in this product, it is possible to add an internal flash for data sampling (Data logger).
Another feature of this module is support for the iBus communication protocol in order to connect to all innovative RTUs, IOs and sensors.
Ability to monitor rectifier and modular UPS for each module
Microcontroller architecture based on chips (ARM-Cortex M4)
Ability to connect to all standard UPS
iBus protocol support
Support 32 devices with iBus protocol
Configuration without the need for desktop software and through the internal web server
Architecture based on a four-layer board
The ability to display charts and graphs
Ability to add internal flash for data sampling (Data logger)
|
General Features
|
|
Power Supply
|
12V
|
|
Digital Input
|
1
|
|
Outputs
|
1
|
|
1-Wire Sensors
|
1
|
|
Communication Channels
|
iBus- Modbus/RTU
|
|
Compatible via iBus
|
|
Battery Monitoring
|
Relay Box (16-8-4)
|
|
GSM Module
|
Power Meter (Single-Phase)
|
|
Smoke Detector
|
Power Meter (Three-Phase)
|
|
Air Quality Detector
|
LDR Sensors
|
|
Door Magnet Detector
|
Temp & Humidity Sensor
|
|
Nitrogen oxide sensor
|
Intelligent Beacon
|
|
CO2 Detectors
|
Vibration Sensor
|
|
Sounder Flasher alarm
|
Leakage Sensors
|
|
Motion Detector
|
Particle sensors
|
