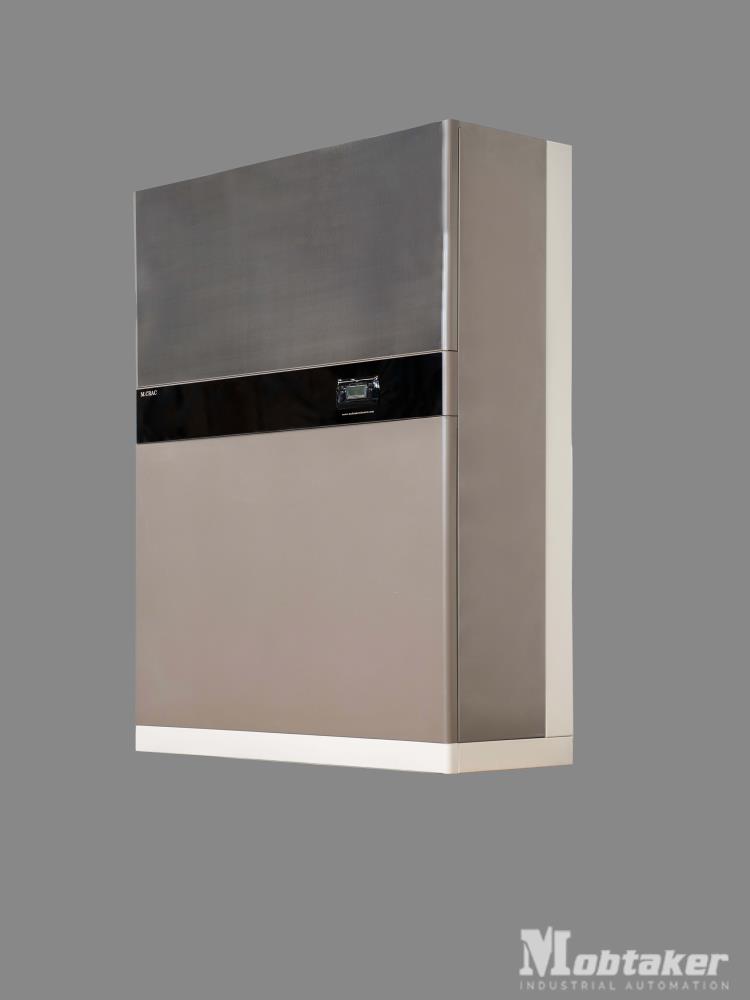

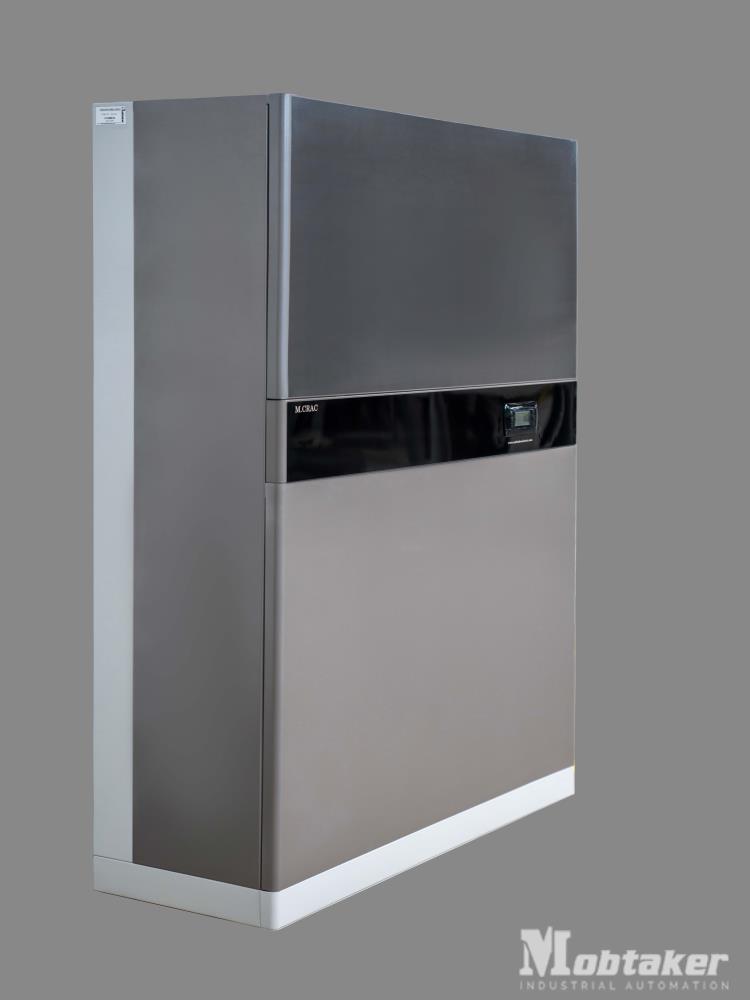

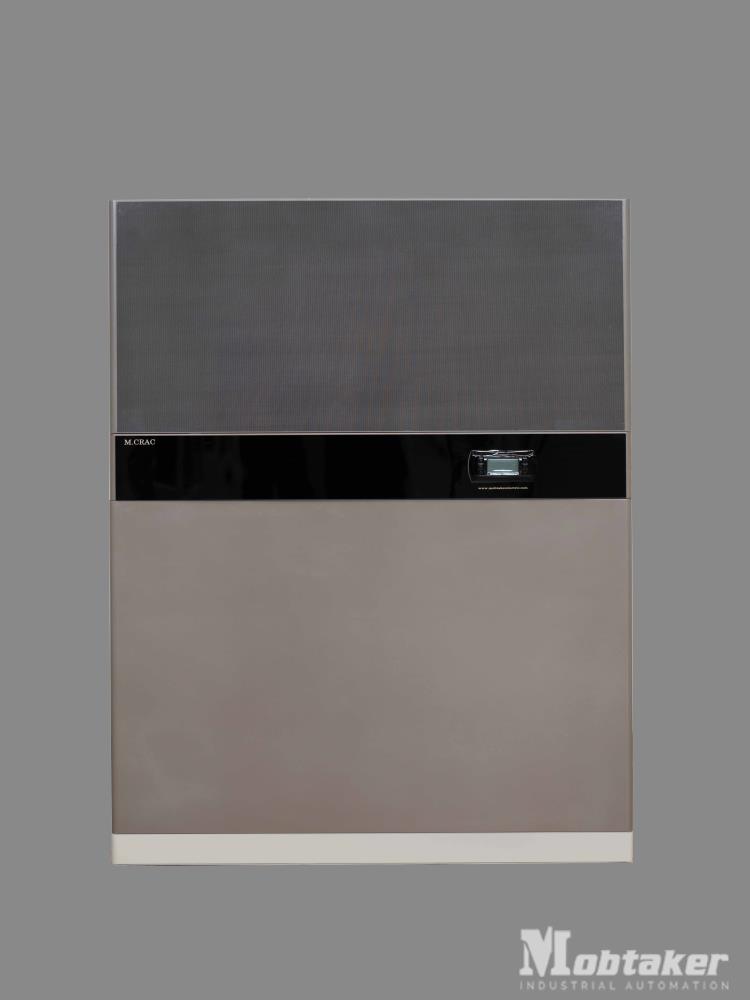

Chilled Water Mini Package



 Advanced controller for accurate temperature control-
     Variable speed fans unit-
Strong body-
Paint the side walls with electrostatic powder RAL 7035-
 Coil design with low pressure drop and maximum SHR-
 Maximum access to the inside of the device for possible repairs-
 Equipped with internal doors to perform minor repairs while the device is operating-
Ability to network up to 16 devices for group operation-
 Communication through SNMP and Modbus TCP/IP protocols-
 Ability to choose between 2-way or 3-way water flow control valves-
 The possibility of installing a humidifier-


Product Details

MRC19D020

MRC18D010

MRC17D007

Model



 26oC , 50% Troom:

Tw,in=7oC   Tw,out=12oC

1750*1200*450

1750*850*450

1750*550*450

Size (L*W*H mm)

23.9

12.1

8.5

Net cooling capacity (kw)

 2 1 Number of fans
0.970 0.485 0.485  Fan motor power (kw)
0.970 0.485 0.485

Electricity power (kw)

 2941(5000)  1235(2100)

 941(1600)

 Maximum air flow CFM (m3/hr)

1

1

0.5

Humidifier capacity-optional (kg/hr)

0.1 0.1 0.04 Humidifier  consumption (kw)
 Belimo  Belimo  Belimo  2way or 3way valve
Carel  Carel  Carel  Controller
Carel  Carel  Carel  Display monitor

2

1

1

Number of air filters

57

55

55

Noise level in 1 meter distance (db)

148

125

108

Weight (kg)
