Spec.

Parameter

Battery Energy Storage Data

Battery Cell Spec.

LithiumLFP, 3.2V, 314Ah, 0.5C, Cycle Life: 12,000 cycles

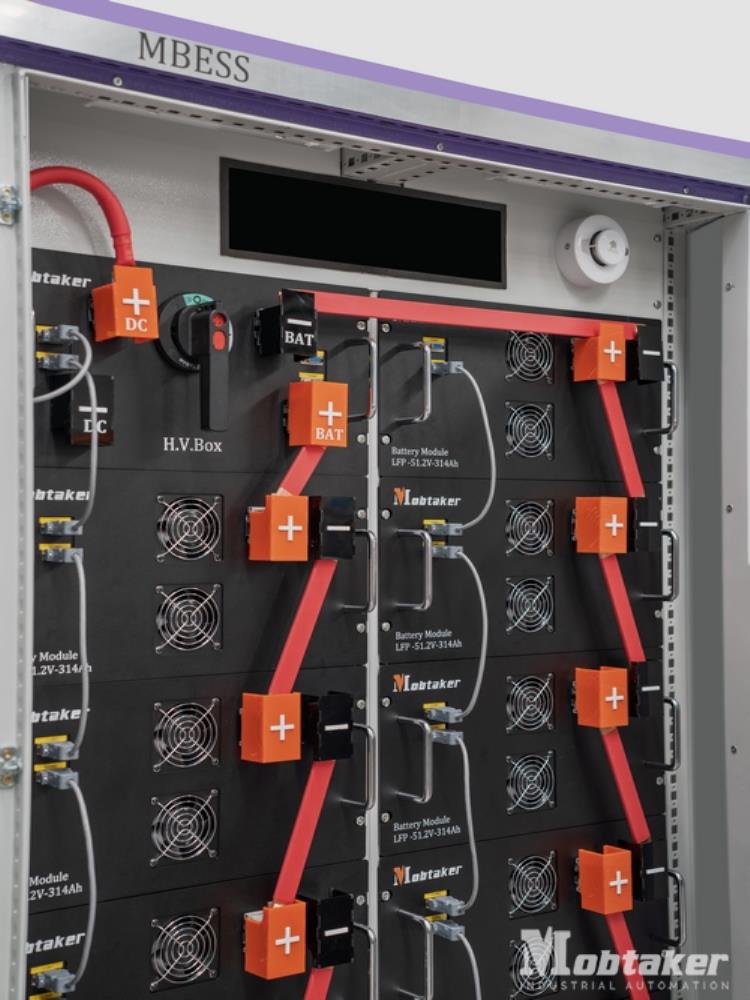

Battery Module/Rack

1P16S, 51.2V,16.1KW / 1P13S 665.6V, 209KW

Max. Charging&Discharging Power/Current

110KW/200A

Operating Voltage Range

520V～760V (Acceptable Range: 250V～820V)

Depth of Discharge (DOD)

99%

Cell Energy Efficiency

95%

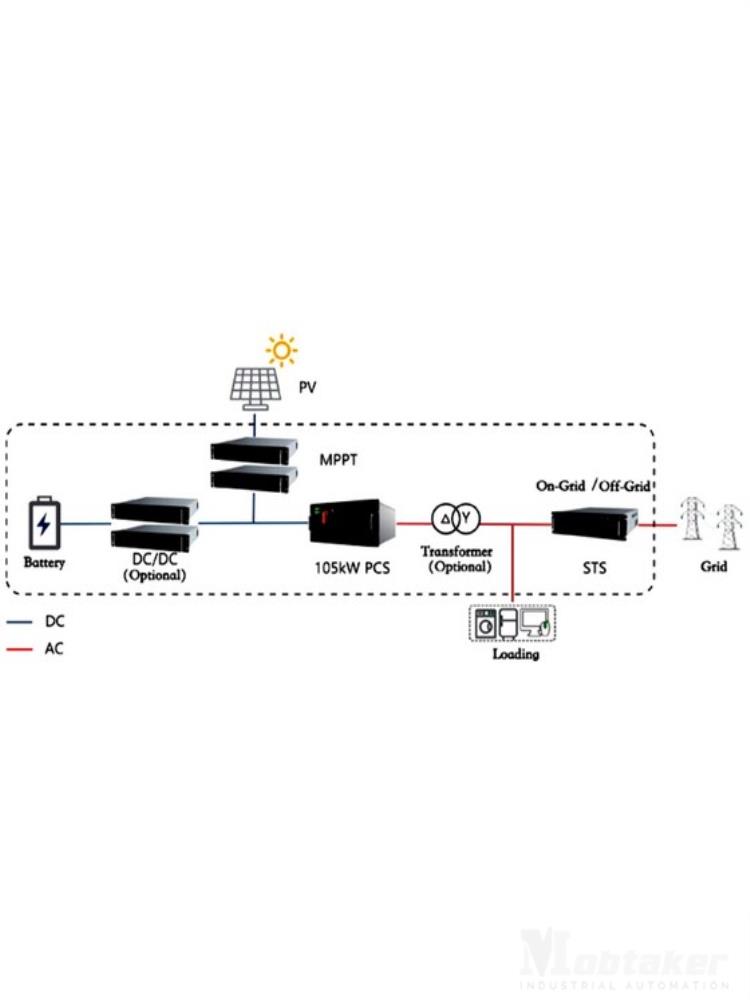

DC/DC Converter

2*50kW

                                                        Input PV

Max Input Power

2*50kW

Max PV Open Circuit/ MPPT Voltage Range

900V/ 180V～800V

MPPT Quantity

2

                                                         ACSide

Grid Connection

3P3W/3P4W , 50Hz

Rated Output Capacity

125kVA

Max. Output Capacity

137.5kVA

Max. Grid Input Capacity

250kVA

Max. Input Current/Max.Output Current

360A/ 180A

Overload Capability

110% Long term

Power Factor

0.99

PCS Max Efficiency

98.5%

STS unit

250KVA, On/off-grid switching time<10ms, Max. efficiency 99.5%

                                                SystemParameters

Features & Protection

Fire Detection and Protection, Anti-IslandingProtection,DCReversePolarityProtection,InsulationDetection,DCSurgeProtection, AC Surge Protection, DC Short Circuit Protection, AC Overcurrent Protection, AC Short Circuit Protection, and AC Under/Over Voltage Protection

Operating Temperature

-30℃～60℃

Communication Method

Ethernet/4G/RS485/CAN

Cabinet Encloser Protection

IP54

Cooling Method

5KW Intelligent Air Cooling

Operating Humidity/ Altitude

0~95%RHNon-Condensing/ 4000m

Dimension (W*D*H) [mm]

1690 ×1000×2230
