The products of this group are available in different body sizes and capacities. The desired temperature control of the aisels of the data center in this category of products is done by using 2-way and 3-way electric valves and variable speed fans of the InRow.
The products of this category must be compatible with chillers of suitable capacity for proper operation.
|

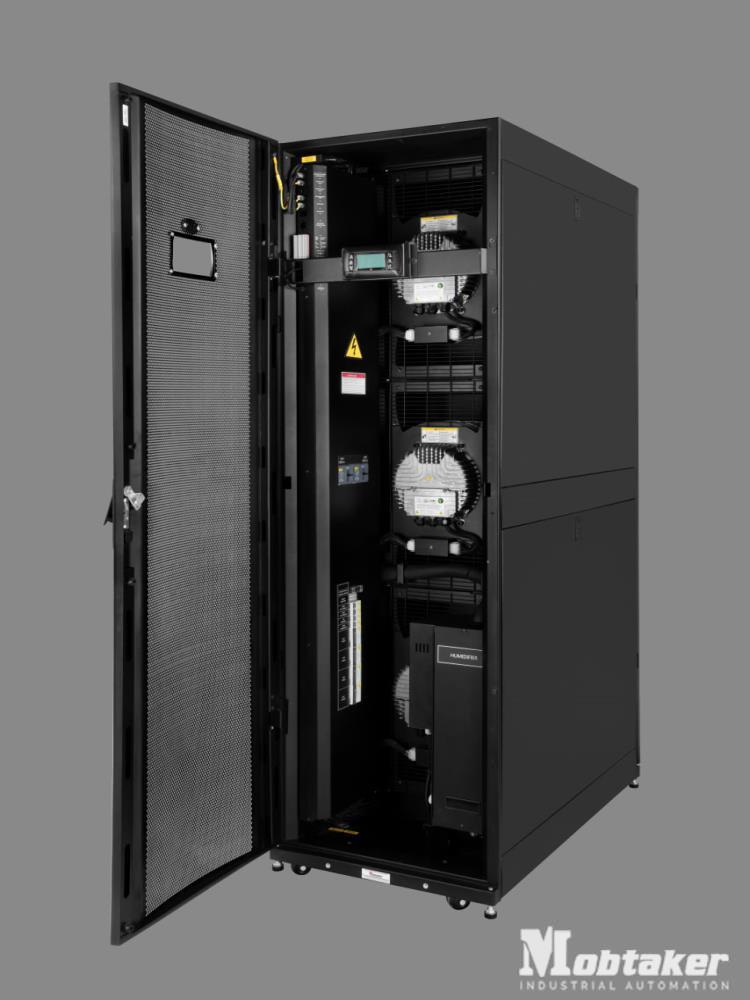

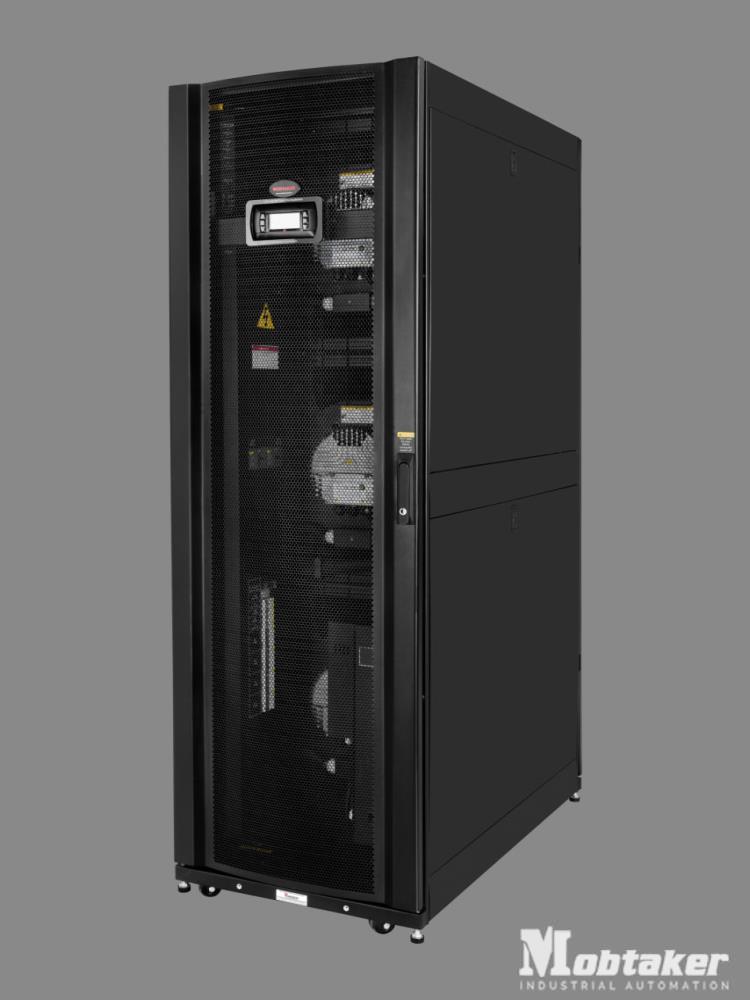

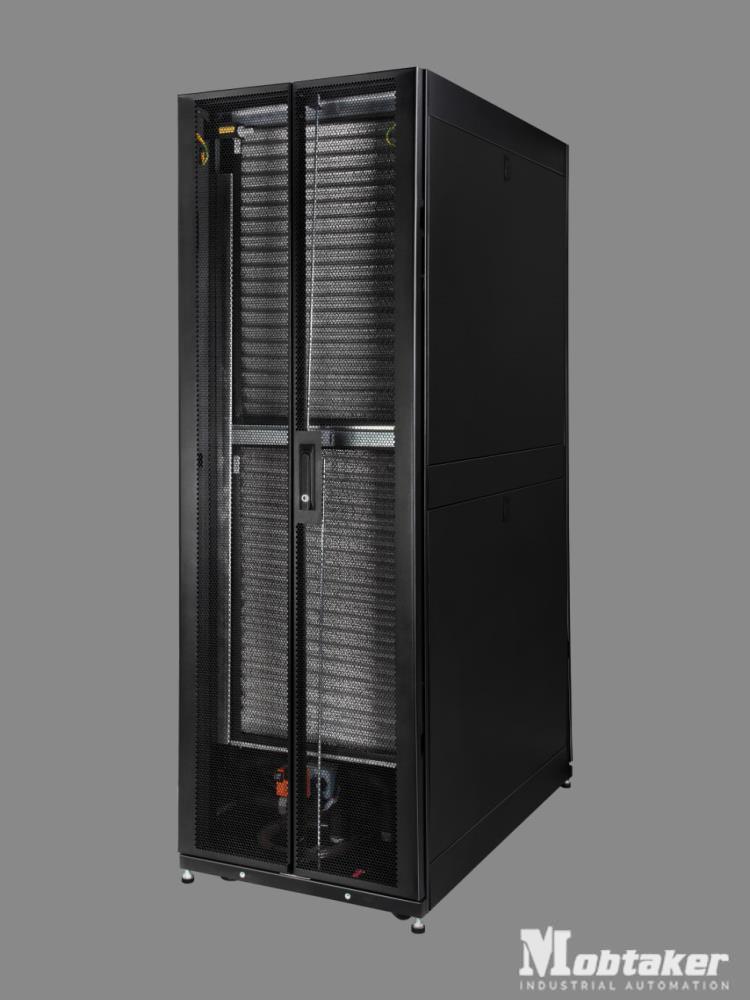

MIC 60601
|

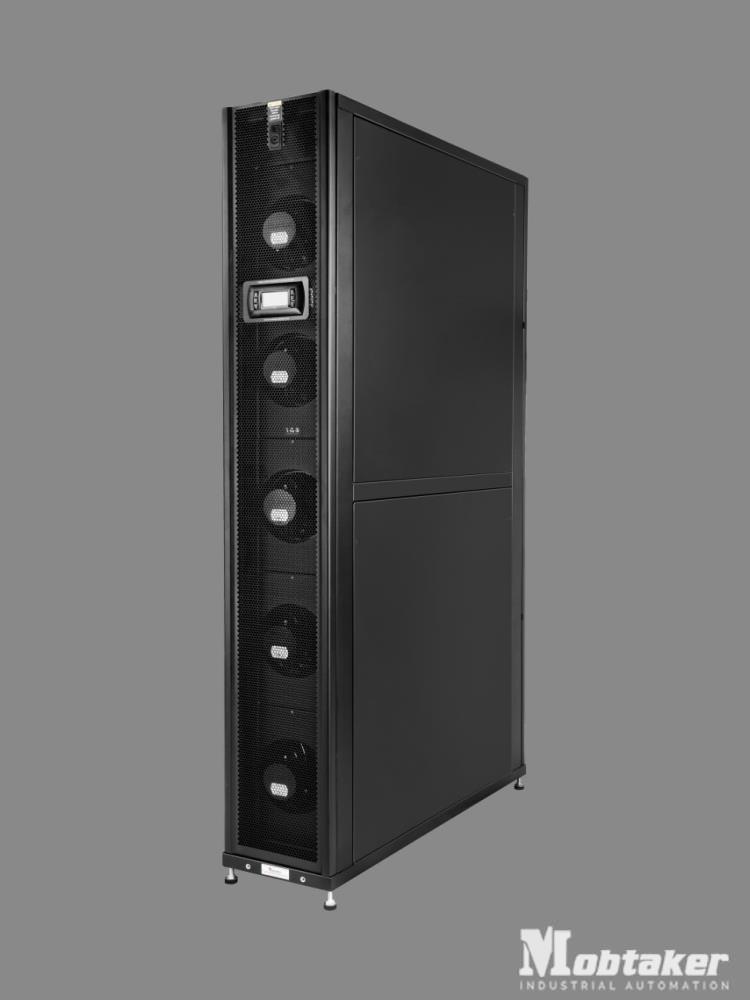

MIC 30301
|
|
|
1048*600*1991
|
1048*300*1991
|
Size (L*W*H mm)
|
|
70
|
41
|
Maximum cooling capacity (kw)
|
|
60
|
30
|
Nominal cooling capacity (kw)
|
|
3
|
5
|
Number of fans
|
| Centrifugal |
Axial |
Fans type |
|
11500(6765)
|
5100(3000)
|
Maximum air flow m3/hr (CFM)
|
|
3
|
---
|
Humidifier capacity-optional (kg/hr)
|
|
2
|
2
|
Number of filters
|
|
780*445*50
|
910*230*25
|
Washable G2
|
Filter size (mm)
|
|
780*455*50
|
910*230*50
|
Pleated G4(optional)
|
|
50 H
|
50 H
|
Frequency of power consumption
|
|
3.7 kw(3ph)
|
1.2 kw(1ph)
|
Nominal power consumption
|
| 2.2kw(1ph) |
--- |
Humidifier power consumption |
| 9kw(1ph) |
--- |
Heater power consumption |
|
380 V-3P
|
220 V-1P
|
Voltage
|
|
80
|
73
|
Noise level in 1 meter distance (db)
|
|
337
|
143
|
Weight (kg)
|
The most important specifications MIC InRows:
1. The frame structure is made of ST37 oil sheet with high strength
2. Electrostatic powder paint on the InRow body with RAL 9005
3. Using a 3-way valve and actuator (can be equipped with a 2-way valve as customized)
4. Use of copper pipe and stainless steel fittings in the pipeline for longer life
5. The ability to feed the device from two separate power sources and a switch between them (according to request)
6. The ability to separate each fan from the system separately, even when the system is working
7. High energy efficiency with variable speed EC fans of the InRow unit
8. Connecting to the network through the Modbus TCP_IP protocol and SNMP and the ability to connect through the BACnet protocol
9. The possibility of networking (Rotation) several InRow with each other up to 16 numbers
10. Functionality in 3 different control modes Supply only, Return only and Supply+Return
11. Ability to install filter dirt warning sensor (optional)
12. Ability to install a drain pump in the pan (optional)
13. Equipped with a float sensor in the pan
14. Ability to install a separate leak sensor (optional) apart from the pan float sensor
15. Use of coil with Blue Fin technology for longer life
16. The ability to install a humidifier according to the order (only in the MIC 60601 model)
17. Equipped with reheater (only in MIC 60601 model)
18. Operation 24*7*365
